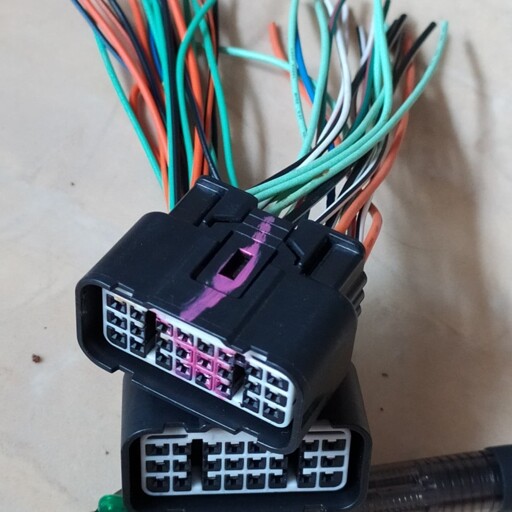

Hello Ask Electronics community, please help me identify the name of this connector.
For context, this is from a motor scooter: Yamaha Mio M3 125. This socket connects the ECU to the wiring harness.
I wish to know how to open this socket to access the rubber/silicone seal inside, and to know that first I need to identify the name of this connector.
So anyone know what is the name of this connector?
Something like “Superseal 24-pin” or so. Also, to clarify: I am not searching for replacement part for this connector. I only need to know the name.
Here are some more pictures of the connector (hover above the picture to see alt-text).
(None of the pictures are mine, I just copied them from the internet).
Not sure what the connector is, but those look like Metri-Pack pins. They release by sliding a thin flat tool or a small jewelers screwdriver in the slot at the bottom of the housing of each pin, lifting a bit to release the pin, and pulling them out the back. Then you can replace that seal, but you’ll have to pull all the wires (keep them in order and marked).
